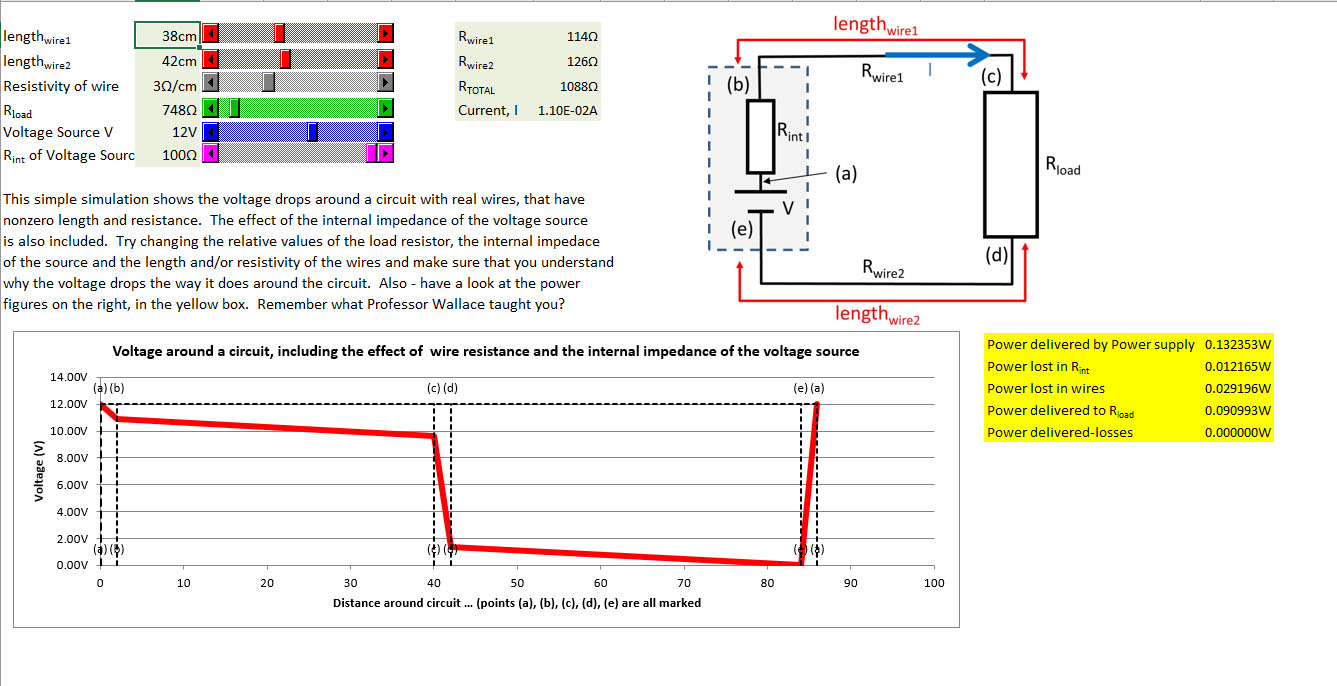

Simple, but quite a rich simulation ... try to understand why the voltage drops and power losses are the way they are.
| Attachment | Size |
|---|---|
 Voltage Drops around a circuit | 107.61 KB |
